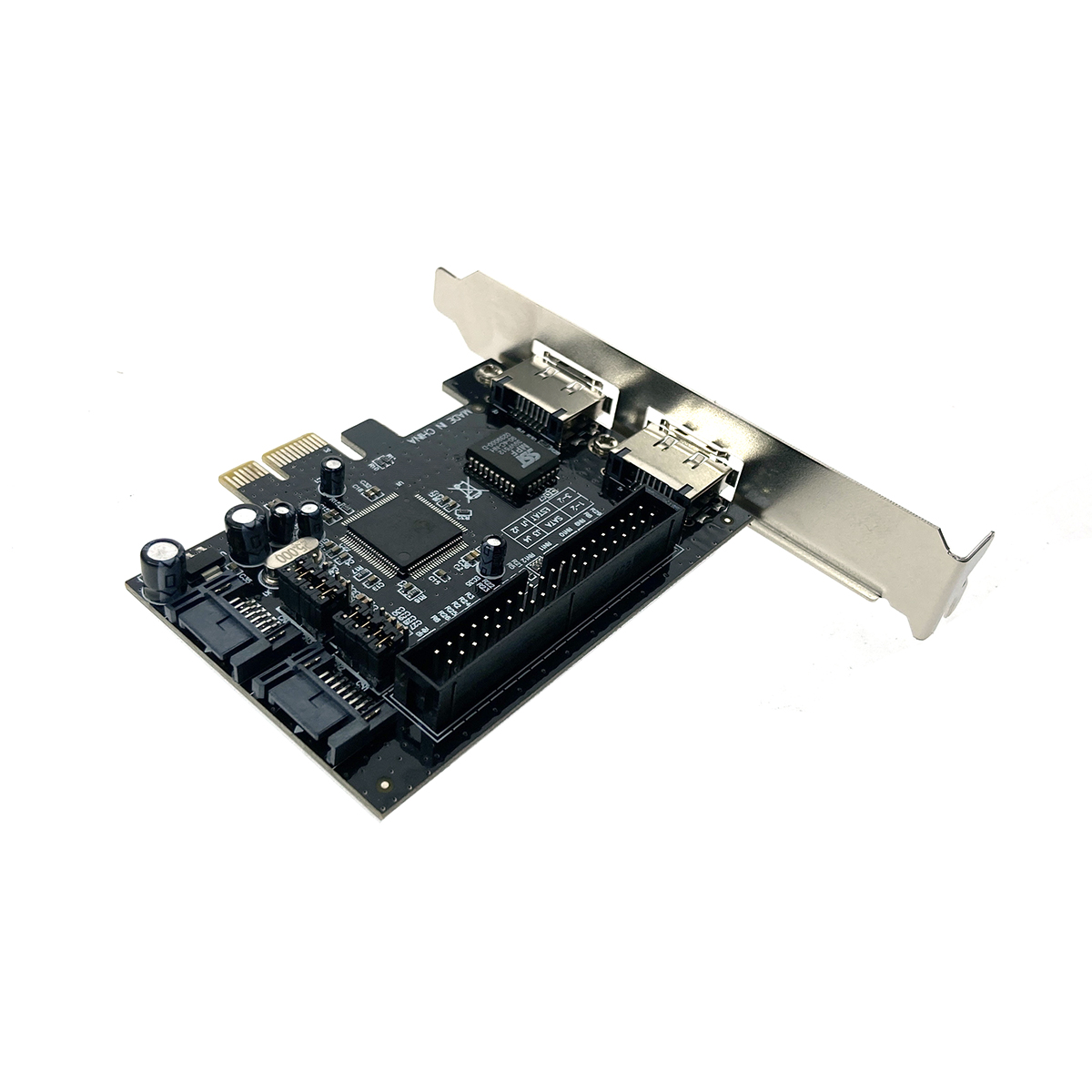

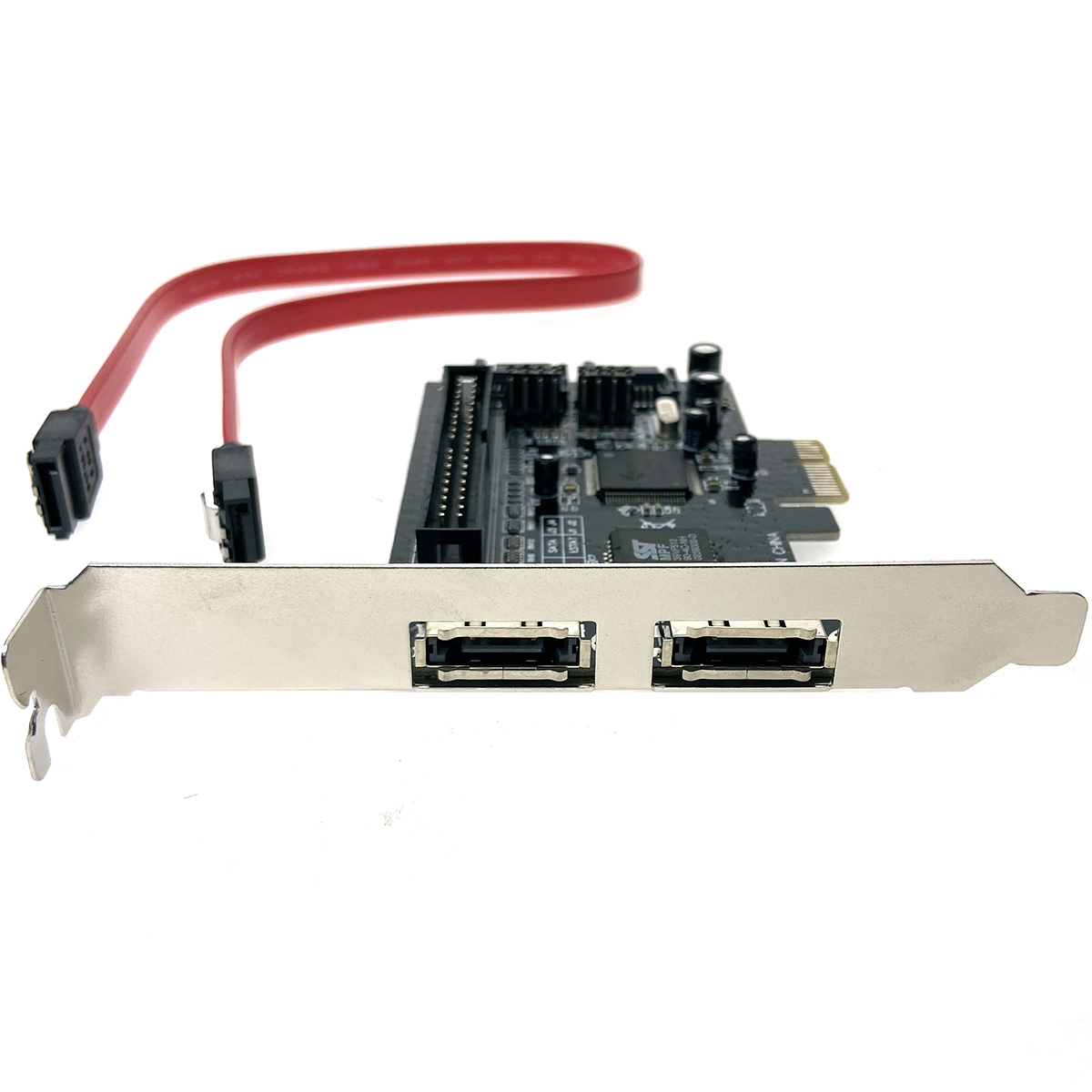

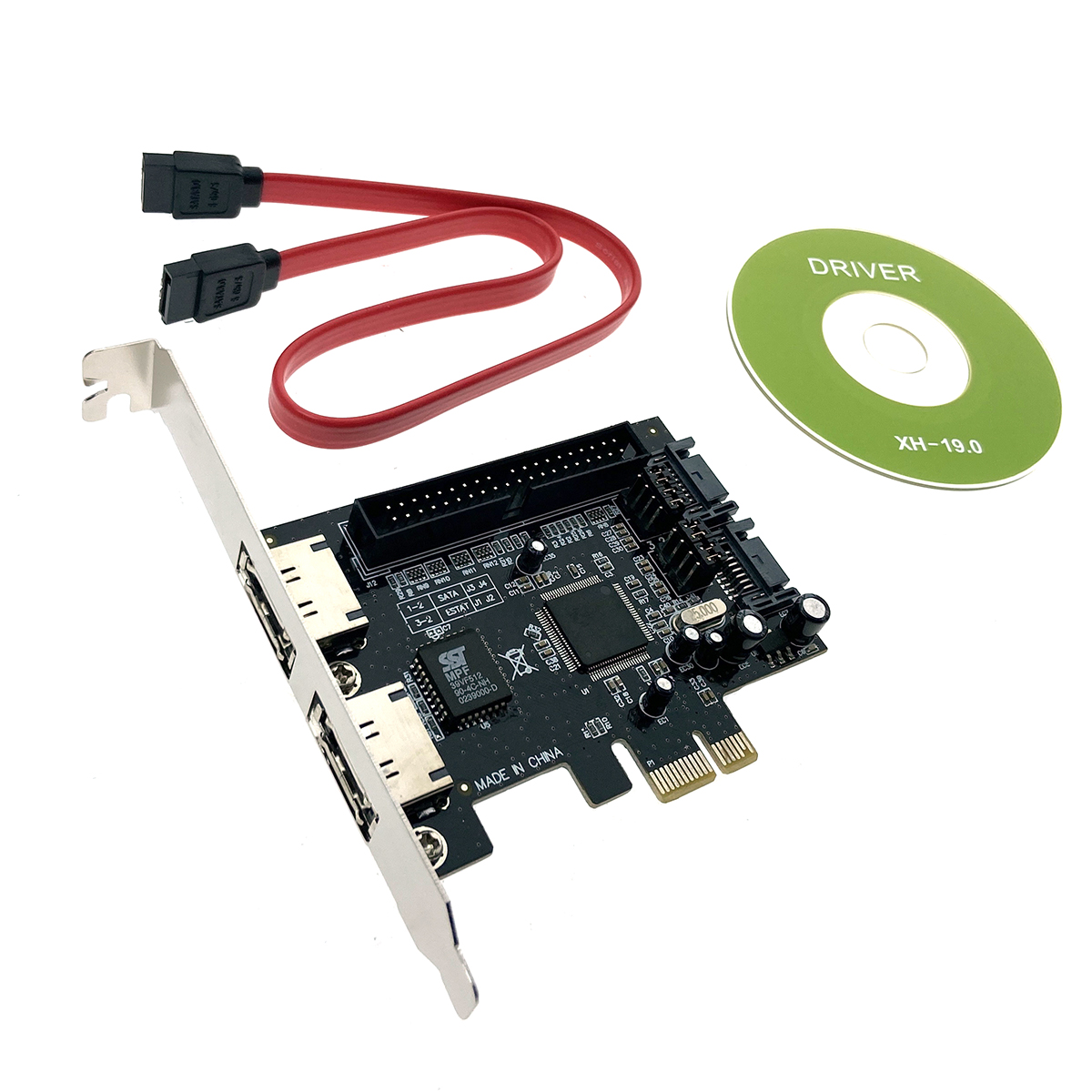

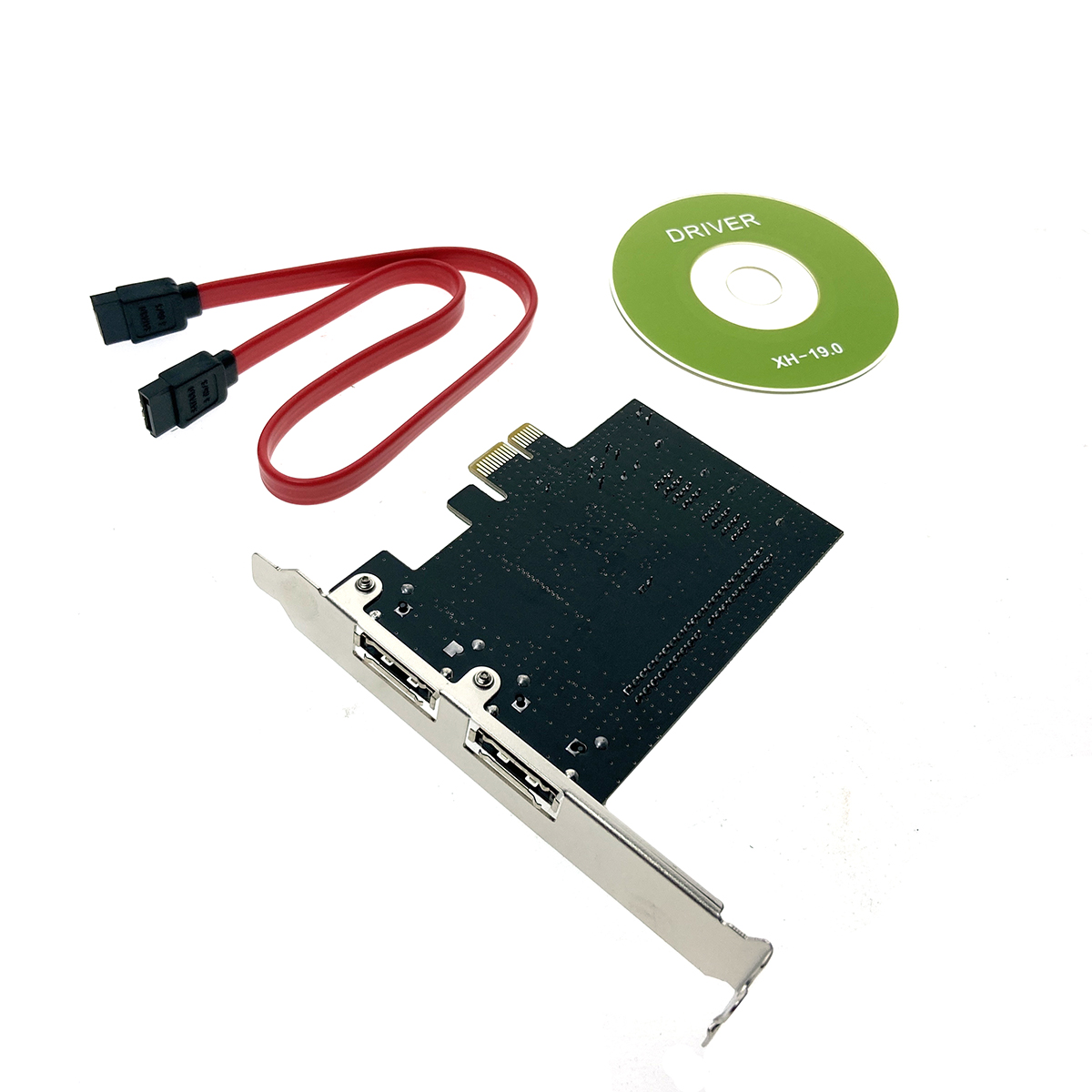

Контроллер PCI-E х1 на 2х SATA2+2 х eSATA+1х IDE, чип JMicron JMB363, модель PCIE005, Espada

Контроллер PCI-e x1 предназначен для подключения IDE и SATA до 4-х дисков к компьютеру. С возможностью создания RAID массивов

Протокол
Serial ATA AHCI (Advanced Host Controller Interface) Spec. Reversion 1.0
Bus Master Programming Interface for IDE ATA Controllers Revision 1.0
PCI Express Bas Spec. Revision 1.0a
Serial ATA High Speed Serialized AT Attachment Spec. Revision 1.0a
Serial ATA II: Extensions to Serial ATA 1.0a Revision 1.1
Gen2i and Gen2m Serial ATA II: Electrical Spec. Revision 1.0

Поддержка технологий
2-port 3.0Gbps SATA II Interface
Two Independent SATA II Channels (Separate Logic and FIFO)
Native Command Queue (NCQ) on SATA II Port
SATA II Gen2i and Gen2m (External SATA Connection, eSATA)
Port Multiplier with Command-based Switching on SATA II Port
До UDMA6 Transfer Mode of PATA
До 4 Storage Device Connections
